| DG series air stream dryer |
Descriptions
DG series air stream dryer for wet processing of corn and potato starch and other raw materials after dehydration sets of drying equipment.Other requirements can also be used for the rapid dry heat-sensitive materials dry powder.
Principle of Work
In the air dryer, the heat flow high-speed operation, so that granular material powder suspended one and get dry.Because of the high-speed airflow, material particles suspended in air, the gas-solid heat transfer surface area between the large, high heat transfer coefficient, drying time is short (most of the drying process of materials just a few seconds), it is particularly applicable to heat-sensitive materials dry.
In the process of drying, after filtering the air heated by air heater spiral feeding machine from sending them into the device by the rising duct wet starch mixture to get an instant dry, dry starch by cyclone, clearance from wind, emissions into the atmosphere by the fan. |
 |
Technical parameters
| Model |
Starch yield
t/h |
Total power
KW |
The volume of consumption of steam
Kg/Kg water |
Water content of starch products |
| DG-0.5 |
0.5 |
|
1.8-2.0 |
12-14％ |
| DG-0.8 |
0.8 |
21.6 |
1.8-2.0 |
12-14％ |
| DG-1 |
1 |
24.6 |
1.8-2.0 |
12-14％ |
| DG-1.2 |
1.2 |
26.6 |
1.8-2.0 |
12-14％ |
| DG-1.6 |
1.6 |
30.1 |
1.8-2.0 |
12-14％ |
| DG-2 |
2 |
47.6 |
1.8-2.0 |
12-14％ |
| DG-2.6 |
2.6 |
59.5 |
1.8-2.0 |
12-14％ |
| DG-3.2 |
3.2 |
75 |
1.8-2.0 |
12-14％ |
| DG-3.6 |
3.6 |
95 |
1.8-2.0 |
12-14％ |
| DG-5 |
5 |
123.4 |
1.8-2.0 |
12-14％ |
| DG-6 |
6 |
170 |
1.8-2.0 |
12-14％ |
| DG-10 |
10 |
223.5 |
1.8-2.0 |

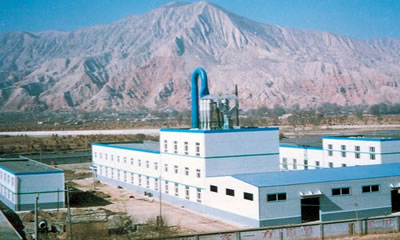

12-14％ | | Product photos
|
