| GFG High Effeciency Fluidizing Dryer |
Features
The structure of fluidization bed is of round so as to avoid dead corner;
Inside the hopper there is a stir in order to avoid agglomeration of raw material and forming canal of flow;
(The small machine does not suppo[=]se the agitation.)
The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too;
It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirement of GMP;
The drying speed is fast and the temperature is uniform. In general the drying time is 20~60 minutes.
|
 |
Applications
Screw extruded granules, sway produced YK series Granules and granules produced by GHL series Granulator.
Suitable for drying humidity block or powder raw material in Pharmaceutical, foodstuff, feed, chemical industries and so on fields.
Large granules, small blocks and adhesive material.
The materials that volumes migh vary during drying process.
Technical parameters
| Item |
Model |
| Feed |
kg |
60 |
100 |
120 |
150 |
200 |
300 |
500 |
| Fan |
Blast |
m3/h |
2361 |
3488 |
4000 |
4901 |
6032 |
7800 |
10800 |
| Air pressure |
mmH2O |
594 |
533 |
533 |
679 |
787 |
950 |
950 |
| Motor power |
kw |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
45 |
| Mixing power |
kw |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
| Stirring speed |
rpm |
11 |
| Steam consumption |
kg/h |
141 |
170 |
170 |
240 |
282 |
366 |
451 |
| Operating hours |
min |
15-30 |
| Heigh of main frame |
Square |
mm |
2750 |
2850 |
2850 |
2900 |
3100 |
3300 |
3650 |
| Circular |
mm |
2700 |
2900 |
2900 |
2900 |
3100 |
3600 |
3850 |

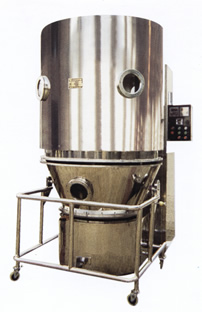

Equipment photo
|
|
