| GZQ Series Vibration Fluidized Bed Drier |
Applications
Applicable to chemical, pharmaceutical, food dehydrated vegetables, grain, mineral and other industries powder, granular materials drying, cooling and other operations.
Such as:citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer,radish,soybean meal,distiller’s grains, seeds,slag,sugar and so on
Features
Adjustable, and the use of wide.Material thickness and the machine speed and the amplitude changes the whole class can achieve regulation.
Vibration motor drive with vibration, smooth operation, easy maintenance, noise at the end of a long life.
Uniform fluidization, no dead spaces and wind wear phenomenon,can be uniformly dry,cooling products.
Material injury on the surface of small, fragile materials can be used for drying; material particles of irregular work hours does not affect results.
Closed-wide structure, effective to prevent the material with air between the cross-contamination, clean operating environment.
Mechanical efficiency and thermal efficiency, energy-efficient effective and dryer than the average efficiency of 30-60.

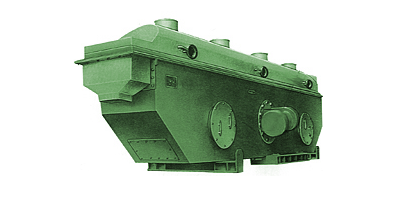

Product photos
Technical parameters
| Model |
Bed body |
Profile |
The rate of vibration motor |
Weight |
| A1 |
B1 |
A |
B |
C |
|
|
| 3×30 |
300 |
3000 |
890 |
3505 |
1830 |
0.5×2 |
1240 |
| 3×45 |
300 |
4500 |
1116 |
5005 |
1830 |
0.75×2 |
1570 |
| 6×45 |
600 |
4500 |
1286 |
5005 |
1940 |
1.1×2 |
1967 |
| 6×60 |
600 |
6000 |
1286 |
6510 |
1940 |
1.1×2 |
2743 |
| 6×75 |
600 |
7500 |
1286 |
8010 |
1940 |
1.5×2 |
2886 |
| 9×60 |
900 |
6000 |
1830 |
6510 |
2110 |
2.2×2 |
3540 |
| 9×75 |
900 |
7500 |
1830 |
8010 |
2110 |
2.2×2 |
4219 |
| 12×75 |
1200 |
7500 |
2400 |
8010 |
2450 |
3×2 |
5223 |
| 15×75 |
1500 |
7500 |
2850 |
8010 |
2570 |
4×2 |
6426 |
| 18×80 |
1800 |
8000 |
3250 |
8520 |
3100 |
5.5×2 |
8600 |

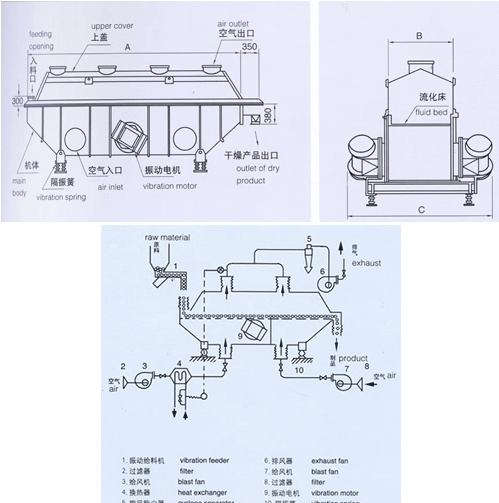

Flow chart
|
|
