| XF Series Boiling Drier Horizontal Feedback Feedb |
Descriptions
Boiling dryer, also known as fluidized bed, through 30 years of use, improvements in the pharmaceutical, chemical, food, food processing, it reflects the increasingly important role.It is by the air filter, bag filter, high pressure centrifugal fan, comprising console. Result of the dry materials are different in nature, supporting removal equipment, according to need and choice of cyclone at the same time, the Department of bag filter, or you can choose one of them.In general, the larger the proportion of materials simply select the cyclone.Lesser proportion of sets of materials required to configure the bag filter, and feed energy back-up device to choose.
Principle of Work
Clean the distribution of hot air through the valve body into the bed, from the browser into the feed of wet materials by the formation of boiling hot air.Materials as a result of extensive contact with the hot air, an increase of heat and mass transfer process, so in a relatively short period of time can dry.From the bed of a body to enter, when after a few seconds to boil dry, auto-body from the other end out of bed.The negative pressure equipment for operation in general.
Applications
chemical raw materials, food, food processing, feed drying operations.Such as: raw materials, dental film particles, granules Chinese medicines, health food, beverage granules, corn germ, feed, plastic resin, citric acid and other dry powder from wet materials.The application of particle size is generally the best 0.1-6mm diameter 0.5-3mm.
Technical parameters
| Model \ Item |
Drying capacity |
Fan power |
Wind pressure |
Air volume |
Inlet temperature |
Maximum power consumption |
Form feed |
| XF10 |
10-15 |
7.5 |
5.5×103 |
1500 |
60-200 |
2.0×108 |
1、star-shaped feed Works
2、pneumatic conveying their own |
| XF20 |
20-25 |
11 |
5.8×103 |
2000 |
60-200 |
2.6×108 |
| XF30 |
30-40 |
18.5 |
7.1×103 |
3850 |
60-200 |
5.2×108 |
| XF50 |
50-80 |
30 |
8.5×103 |
7000 |
60-200 |
1.04×109 | Note: The drying capacity to dry grain in early sweat Plum 20%, 5% final moisture content, water temperature at 130 ℃ in mind the determination of the drying capacity of other materials in accordance with the specific dry conditions prevail, when the attention of A-type selection: allocation of cyclone; B type: inside bag; C-type: not only with Tornado, a belt bag filter.

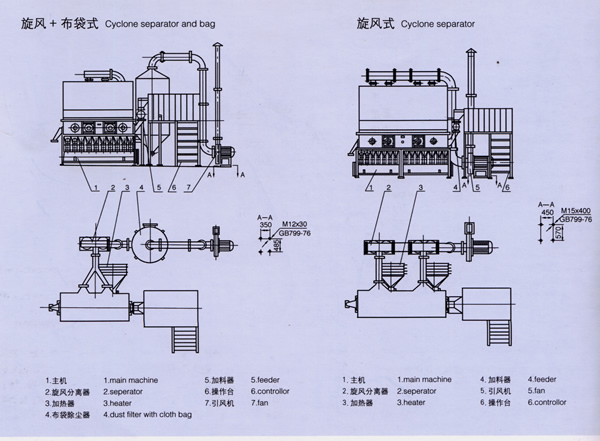

Installation diagram
Installation instructions
Device to be placed neatly at the end of the foot with screws, the seal of good parts.
Fans can be placed in outdoor or indoor self-silencers.Layout can be adjusted in accordance with specific circumstances and where appropriate.
Product photos
|
|
