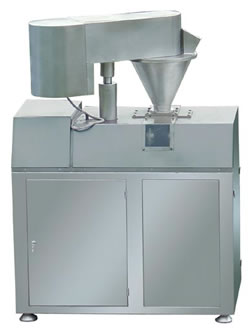

| GL Series Dry Granulating Machine |
Features
1 dry uniform particle density, degree of disintegration, and as expected the high rate.
2 special feeding structure, and ensuring the effective feed.
3 rolling troubled waters cooling cycle to ensure that mixing does not appear the phenomenon of viscous materials.
4 do not need to water or wetting agent, such as ethanol, does not require reheating dry process less high efficiency and low cost.
5 the use of advanced electro-hydraulic, simple and reliable operation, high degree of automation.
6 sealed clean operation to meet the health requirements of drugs.
7 is especially suitable for wet granulation of materials can not be resolved.
Principle of Work
Use of materials in the crystallization of water, directly to the powder particles made of new equipment, reasonable structure, stable and reliable performance, easy to clean maintenance.
The particle system can be pressure tablet, for granules, capsules, such as irrigation.Mainly used in pharmaceutical, food, chemical and other industries granulation.Especially suitable for wet granulation insoluble materials. |
 | The scope of application
of Chinese medicine: tablet granules, capsules filled with food particles, such as: food manufacturers to use particles, plastic particles seasoning: a variety of plastic molding chemical particles: a catalyst, pigments, lotions and other particles
Technical parameters
| Model |
Capacity kg/h |
Hopper volume L |
Roll Size MM |
The largest pre-pressure roller MAX. |
The largest pre-work of the hydraulic system pressure max. |
Feed roller and the form of the speed of adjustment |
| 40 |
5-20 |
3 |
Φ 120 × 40 |
6 |
8 |
Frequency Control |
| 80 |
20-60 |
3 |
Φ 200 × 80 |
10 |
15 |
Frequency Control |
| 120 |
30-100 |
5 |
Φ 200 × 120 |
10 |
15 |
Frequency Control | |
|
