| DPL-type multi-functional coating granulation mach |
Descriptions
DPL utility will Granulator is a kind of fluidized bed technology and spray drying technology combining innovative equipment, such equipment set Granulator, centrifugal coating, drying fluid in one multi-purpose, especially applicable to Western medicine, food, chemical industry multi-species, multi-form and the concentrated liquid preparation of adhesive particles, coating. Multi-function Coating Machine Granulator prepared porous particles for instant granules.Can also be a tight ball (pills) particles, the ball really high degree.Sealing equipment, and smooth, no dead-end, easy to operate.The entire process to complete one piece of equipment, and confined in the same vacuum container to complete granulation, coating system or pill.
Technology
1. Top Spray Process: General for drying, granulation, and coating Preparation of instant granules.Loose particles prepared, instant, easy disintegration tablet.
2. At the end of spraying process: for the fine particles and coated films.Mainly applicable to general thin film coating, sustained release, controlled-release coating, enteric coating, fine particle coating.
3. Tangential spray process: This process uses several of the most popular kind of system can be pills, granulation, coating and package enough.Particles (pelleted) the ball really high, dense, smooth surface is ideal for production equipment capsule particles.With the solution or powder deposited on the pellets can be prepared pericardial pelleting high-performance.Cut the top spray spray spray at the end of
Features
1. Set mixed, spray drying, granulation, particle coating a variety of functions that can step directly into the liquid material into particles;
2. For Western medicine granulating, coating; medicine extract granulating, coating; the preparation of porous-type instant granules, sustained-release or controlled-release multi-layer coating; powder granulating materials, coating.Granulating liquid extract of proprietary Chinese medicines, coating;
3. To prepare 50μm particle size and coating; Preparation of dense balls (pills) or coated particle shape; with fast dry powder materials, rapid boiling granulating, coating a wide range of functions;
4. The device is in a confined work under negative pressure, and the smooth inner surface of the equipment, no dead-end, easy to clean, in line with the "GMP" requirements;
5. Materials can be used as a granulating liquid wetting adhesives, can save a lot of alcohol, reduce production costs and can produce a small dose of sugar or sugar-free type of Chinese medicine Granulator;
6. The particles produced instant, easy dissolution of granules, tablets easy to collapse;
Technical parameters
| Model |
DPL |
5/10 |
15/30 |
30/60 |
60/120 |
120/240 |
| L maximum working volume |
顶喷(L) |
45 |
100 |
220 |
420 |
670 |
| 底喷(L) |
23 |
50 |
110 |
210 |
340 |
| 直径(mm) |
500 |
900 |
1200 |
1400 |
1600 |
| Production capacity (kg/batch) |
5～10 |
15～30 |
30～60 |
60～120 |
100～200 |
| Temperature range (℃) |
21 |
54 |
78 |
108 |
163 |
| Steam consumption (kg/h) |
Automatically adjust room temperature -90 ℃ |
| Steam consumption (kg/h) |
50 |
100 |
160 |
240 |
320 |
| Induced draft fan power (kw) |
5.5 |
7.5 |
11 |
22 |
30 |
| The total consumption of compressed air (m3/min) |
0.6 |
0.6 |
0.9 |
1.1 |
2.0 |
| Machine weight (kg) |
1450 |
1800 |
2600 |
3450 |
4000 |
| Dry sound (dB) |
Fan isolation to deal with ≤ 75 |
Host installation size
(mm) |
A |
2900 |
3200 |
3900 |
4300 |
4800 |
| B |
1280 |
1760 |
2310 |
3520 |
3750 |
| C |
2300 |
3460 |
4200 |
4510 |
4860 |
| D |
900 |
1320 |
1420 |
1640 |
2000 |
| φE |
500 |
1000 |
1200 |
1400 |
1600 |

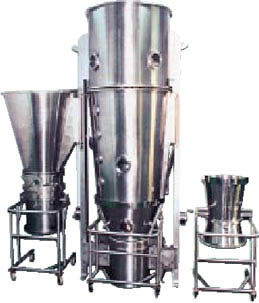

Product photos
|
|
