GHL Series High Speed Mixing Granulator |
Features
The machine adapts horizontal cylinder structure. Its structure is reasonable; Use air filled seal shaft to drive. When washing, it can be changed to water; Use fluidization to granulate and the granule is near ball. Its flow is good; Compared the traditional process, 25% of adhesive can be reduced and the daying time can be shorted; The time of mixing in dry is 2 minutes and the time of granulating is 1~4 minutes. Compared with the traditional procsss 4~5times of efficiency is raised. In the same sealed container, dry mixing, humidity mixing, and granulating can be finished. It is in conformity with the requirements of GMP; The whole operation has strict safe and protective measures. |
|
Application If is suitable for pharmaceutical industry, foodstuff industry, chemical industry and so on. The granule is made from powder to damp granule in which the adhesive should be injected in it.

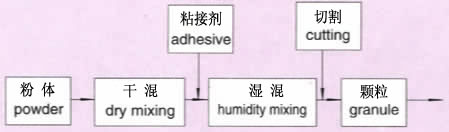

Principle The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules. Dwelling size dwelling size folder folder Process Flow Diagram
Overall dimensions
Technical parameters
item |
specification |
name |
unit |
10 |
50 |
150 |
200 |
250 |
300 |
400 |
600 |
capacity |
L |
10 |
50 |
150 |
200 |
250 |
300 |
400 |
600 |
output |
kg/batch |
3 |
15 |
50 |
80 |
100 |
130 |
200 |
280 |
admix speed |
r.p.m |
300/600 |
200/400 |
180/270 |
180/270 |
180/270 |
140/220 |
106/155 |
80/120 |
admix speed |
kw |
1.5/2.2 |
4/5.5 |
6.5/8 |
9/11 |
9/11 |
13/16 |
18.5/22 |
22/30 |
incise speed |
r.p.m |
1500/ 3000 |
1500/ 3000 |
1500/ 3000 |
1500/ 3000 |
1500/ 3000 |
1500/ 3000 |
1500/ 3000 |
1500/ 3000 |
incise powder |
kw |
0.85/1.1 |
1.3/1.8 |
2.4/3 |
4.5/5.5 |
4.5/5.5 |
4.5/5.5 |
6.5/8 |
9/11 |
Compressed air consumption |
m3/min |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.1 |
1.5 |
1.8 |
Weight |
kg |
250 |
500 |
800 |
1000 |
1300 |
1800 |
2200 |
2600 |
Sizes |
A |
B |
C × D |
E |
F |
10 |
270 |
750 |
1000×650 |
745 |
1350 |
50 |
320 |
950 |
1250×800 |
970 |
1650 |
150 |
420 |
1000 |
1350×800 |
1050 |
1750 |
200 |
500 |
1100 |
1650×940 |
1450 |
2050 |
250 |
500 |
1160 |
1650×940 |
1400 |
2260 |
300 |
550 |
1200 |
1700×1000 |
1400 |
2310 |
400 |
670 |
1300 |
1860×1100 |
1550 |
2410 |
600 |
750 |
1500 |
2000×1230 |
1750 |
2610 | |
|
