| YPG Series Pressure Spray(cooling)Dryer |
As different products have different drying process and powder rules, there is no requirement applicable to a variety of single-type Spray Dryer. Spray art is still regarded as a kind of experiment is the basis of the correct shape. "Brastel benefits" company equipment for users of the model material of the experimental process, this pragmatic attitude, so that we have completed the detergent, polymer resin, silica, Mn304, soy milk, lipase, potassium sorbate, sea cucumbers and other turn-key projects of Chinese medicine granules.
Descriptions
The material is sprayed into exiguity fog by nozzle on the top of tower. Follow the heat wind, the material is past, economizing energy, high effect, and wide used in food, dyestuff, chemical industry and so on.
Technical parameters
| spec |
50 |
100 |
150 |
200 |
300 |
500 |
1000 |
| Water evaporation capacity |
50 |
100 |
150 |
200 |
300 |
500 |
1000 |
| Overall dimension |
1600×8900 |
2000×11500 |
2400×13500 |
2800×14800 |
3200×15400 |
3800×18800 |
4600×22500 |
| High-pressure pump pressure |
2-10 |
| Power |
8.5 |
14 |
22 |
24 |
30 |
82 |
30 |
| Inlet air temperature |
300-350 |
| product water contents |
<5and 0.5 can be reached |
| material restoration |
>97 |
| electric heating |
75 |
120 |
150 |
When the temperature is lower then 200, the parameters should be calculated according to the practical condition. |
| electrically producing steam |
0.5+54 |
0.6+90 |
0.6+108 |
| hot furmace |
100000 |
150000 |
200000 |
300000 |
400000 |
500000 |
1200000 |
Features
Fast-drying, liquid atomization by the surface area greatly increased after the hot air flow, the instantaneous evaporation can be 95 -% -98% of moisture, drying time for the completion of only a few seconds, especially for drying heat-sensitive materials;
Products derived from spherical particles, particle size uniformity, mobility, and solubility, and products of high purity, good quality;
The use of a wide range, according to the characteristics of materials can be used to hot-air drying, granulation can also be used cold, the adaptability of the materials;
Simple and stable operation, convenient control and easy to automate operations.
Applications
- Food Industry: Fatty milk powder, cocoa milk powder, subsitute milk powder, egg white food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth. Sugar, corn syrup, corn starch, glucose. pectin, malt sugar, sorbic acid potassium and etc.
- Medicine: Traditional Chinese medicine extract, ointment, yeast vitamin, antibiotic amylase, lipase and etc.
- Plastics and resin: AB, ABS emulsion medicine extract, ointment, yeast, vitamin, antibiotics and resin ;urea -formaldehyde resin; formaldehyde resin, polythene, poly-chloroprene and etc.
- Detergent: common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid and etc.
- Chemical industry: Sodium fluoride (potassium ),ALKALINE DYESTUFF and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
- Ceramic: aluminium oxide, ceramic tile material, magnesium oxide, talcum and so on.
- Other: Calmogastrin, hime chloride, stearic acid agent and the cooling spray.

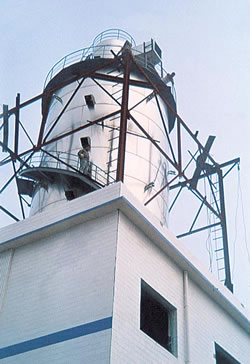

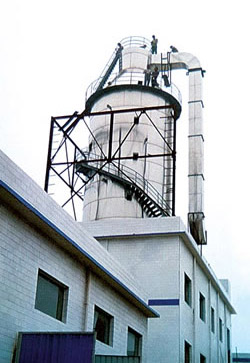

Product photos
|
|
